| Model |

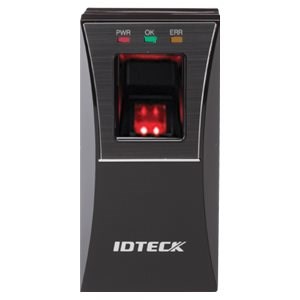

LX006 |
| CPU |
32bit ARM9, 8bit and 16bit Microprocessor |
| Memory Module |
Fingerprint Module |
Program Memory: 1M Byte Flash Memory |
| Data Memory: 1M Byte / 2M Byte / 4M Byte Flash Memory |
| Controller |
Program Memory: 128K Byte Flash Memory |
| Data Memory: 256K Byte Flash Memory / 32K Byte SRAM |
| Fingerprint User |
1,000 / 2,000 / 4,000 |
| ID User |
10,000 Users (Including Fingerprint Registration) |
| Fingerprint Templates Size |
800Bytes for 2 Fingerprint Templates |
| Read Range |
IDC80/IDC170 : Up to 10cm |
| Reading Time (Card) |
30ms |
| Verification Time |
Less than 1 sec. |
| Identification Time |
Less than 2 sec. |
| Power / Current |
DC12V / Max 290mA |
| External Reader Port |
Not Available |
| Communication |
RS232 / RS485(Max.32ch), Ethernet |
| Communication speed |
Serial |
Default: 57,600bps
Selectable: 9,600bps / 19,200bps / 38,400bps |
| Ethernet |
10/100Mbps |
| Input Port |
3 EA : LED, Buzzer, Operating Mode Control |
| Output Port |
3 EA : Fingerprint Error-Output, OK-Output, Tamper-Output (Open Collector)
/ DC12V~18V, Rating Max.2A |
| Output Type |
26 Bit Wiegand(Default), ABA Track II(Selectable) |
| Voice Output |
Default : English
Optional: Chinese, Spanish, Arabic, Korean, French, Italian, Russian, Deutsch, Thai |
| LED Indicator |
3 Array LED Indicators |
| Beeper |
Piezo Buzzer |
| Operating Temperature |
Fingerprint Module |
-15°C ~ +40°C |
| RF Reader |
-35°C ~ +65°C |
| Operating Humidity |
10% to 90% relative humidity non-condensing |
| Color |
Black |
| Material |
Polycarbonate |

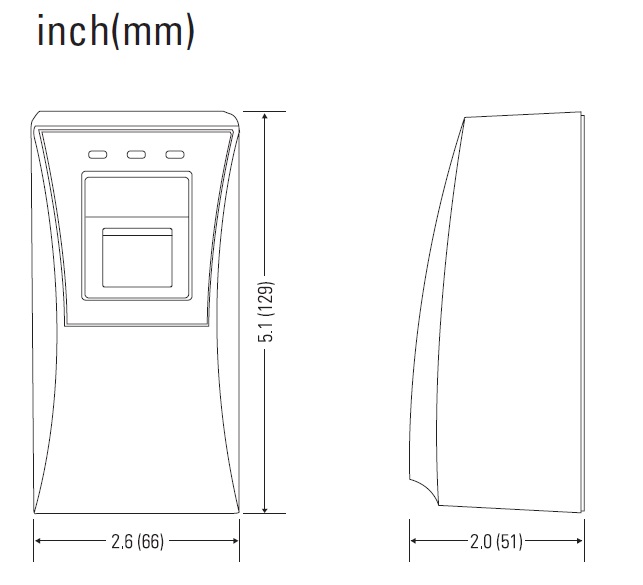

| Dimension (W x H x T) |
69mm x 127mm x 43mm |
| Weight |
230g |
| Certification |
FCC, CE, KC, RoHS |
|
|
